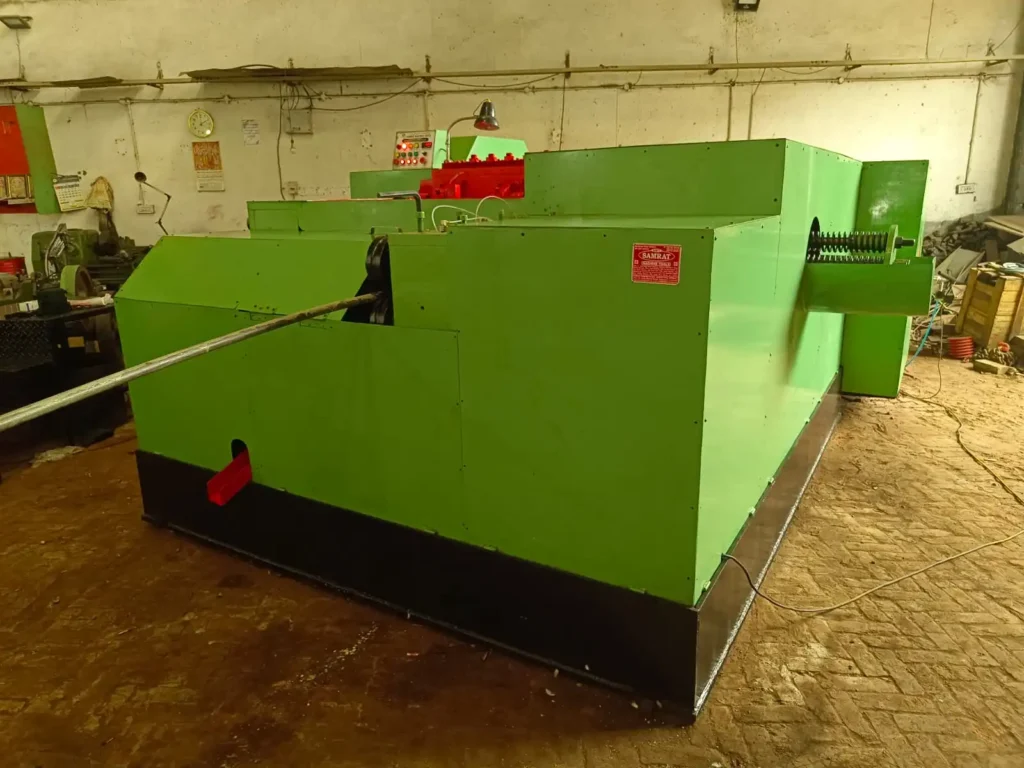

Nut Former Machine – High-Speed Multi-Station
Our Nut Former Machines are engineered for high-volume production of standard and specialised nuts. Utilising advanced multi-station cold forging technology, these nut making machines deliver exceptional precision and material efficiency.
Technical Specifications & Features
- Multi-Station Versatility: Available in 5, and 6-station configurations to handle complex geometries.
- High Production Speed: Capable of producing up to 270 pieces per minute depending on size and complexity.
- Precision Control: Equipped with automated monitoring systems to ensure consistent quality across every batch.
- Durability: Heavy-duty frame construction designed to withstand the rigours of continuous industrial use.
| Size | Model | Output | Motor Power |
| 6mm | 11B | 190-200 pcs/min | 7.5HP |
| 8mm | 14B | 170-180 pcs/min | 10HP |
| 10mm | 17B | 124-130 pcs/min | 15HP |
| 12mm | 19B | 80-90 pcs/min | 20HP |
| 16mm | 24B | 70-80 pcs/min | 25HP |
| 20mm | 30B | 55-60 pcs/min | 40HP |
| 22mm | 33B | 50-55 pcs/min | 50HP |
| 24mm | 36B | 45-50 pcs/min | 60HP |
Key Features
- Multi-station forming system.
- Automatic feeding mechanism.
- High production speed.
- Accurate die positioning
- Strong and stable frame.
Applications
- Automotive industry.
- Construction sector.
- Industrial fastener production
FAQ
What is a nut former machine?
A machine used to manufacture nuts using cold forging process.
What sizes can be produced?
Typically M6 to M24 depending on machine model.
What is the production capacity?
Up to 50–200 pieces per minute depending on configuration.
What is the power requirement of a nut former machine?
Power depends on model size, usually in the range of 7 HP to 60 HP for industrial machines.
What material can be used in nut former machines?
Common materials include mild steel, carbon steel, and alloy steel wire.
Do you provide installation and support?
Yes, installation guidance and technical support are provided for machine setup and operation.
